How to use
There are no airlines or power cords needed to operate. Take advantage of the first tilting car lift available for any personal or commercial garage and use.
AUTOLift3000 is extremely easy to use. There’s no installation required, no special tools to buy, and no complicated instructions. It’s portable and can be used anywhere. You don’t need compressed air, and there are no wires to worry about.

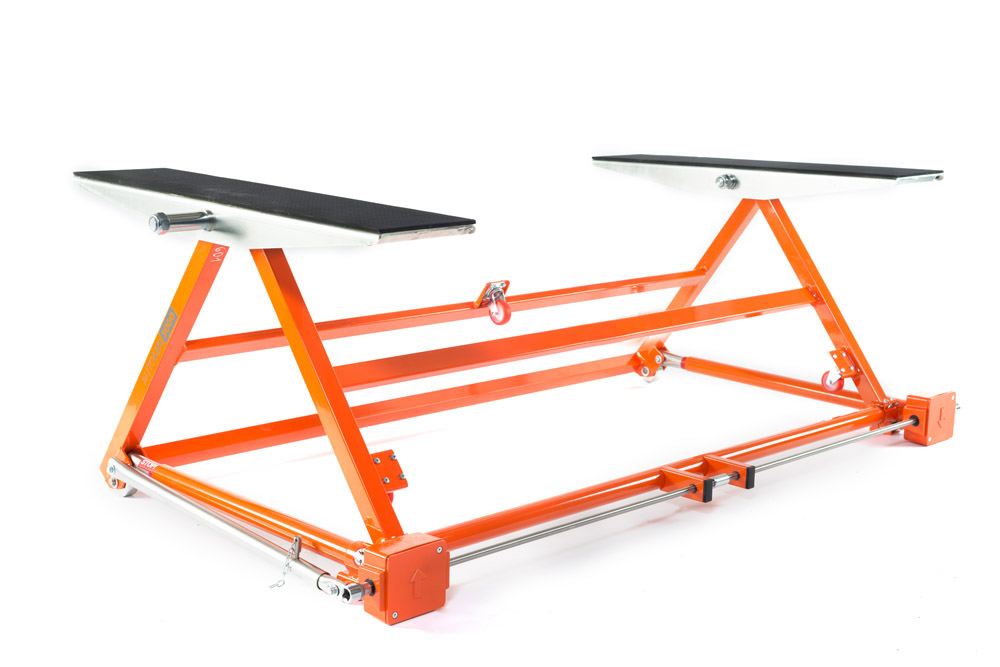

AUTOLift3000 is the high quality, European designed and built portable car lift suitable for any garage.
Manufactured to the highest European standards, the AUTOLift3000 has been sold in more than 50 countries worldwide. Over 18,000 AUTOLift3000 portable vehicle lifts have been delivered to repair shops, collision centres, home mechanics, classic car restorers, and many other satisfied customers
Lifting a Vehicle
- Slide the portable car jack under the car. It fits under cars with a unibody design, as long as it has 4 inches clearance. AUTOLift3000 is on wheels and it’s lightweight, so it’s easy to maneuvre under a vehicle.
- To lift the whole car, place AUTOLift3000 under the centre of the car at its balance point. To lift the front or rear of a vehicle, place the lift closer to the end you want to lift.
- Install the gearbox adapter to a power drill. The adapter is a standard 3/8-inch drive adapter.
- Insert the adapter in the ↑ gearbox and power the drill forward to lift the car.
- Lift the car three to six inches off the ground until a pair of wheels is off the ground. Test the balance by hand to ensure the lift is placed in the proper position for your needs. If the balance isn’t correct, lower the AUTOLift3000 and reposition the lift.
- It takes approximately 30 seconds to lift the car to full height. Do not lift the car past the red safety limit indicator.
- Secure AUTOLift3000 with the locking pin. This locks the lift at its extended height.
- The car can be tilted forward or rearward. To tilt a car safely, lift the car from the end that is touching the ground. Get a firm grip on a solid location such as a fender or bumber and gently lift. Be aware that tilting is only possible when the car is balanced at its centre of gravity.
- Install a jack stand under the car. Always insert a jack stand to safely secure the car on the lift.
Lowering a Vehicle
- Remove the supporting jack stand as well as the security locking pin from the lift. It’s now ready to be lowered.
- Insert the drill adapter into the ↓ gearbox and crank down until the lift is fully lowered.
- Stow AUTOLift3000 flush against the wall or hang it off the ground to store when not in use.
It takes just seconds to set up and can lift or lower a 6,000- pound car in just half a minute.
The AUTOLift3000 doesn’t rely on compressed air or electricity to raise and lower. With its completely maintenance-free mechanical gearbox, you can use the AUTOLift3000 anytime, anywhere, and on all most vehicles up to 3,000kg (6,614lbs).
Uses for
AUTOLift3000 is the convenient solution for virtually any garage, repair shop, or detailing centre.
There’s no need to squeeze under your car on a creeper anymore or perch your vehicle precariously on a hand jack. Instead of using dangerous, outdated methods for lifting a vehicle, use the industry’s first portable tilting vehicle car jack, AUTOLift3000. You’ll save time and make working on any vehicle safe and easy. It’s uses are endless!.
Detailing Centres
AUTOLift3000 provides access to those hard-to-reach areas in a vehicle’s undercarriage and wheel wells. The lift tilts both forward and to the rear to expose tough grime. And because AUTOLift3000 is waterproof, there’s no concern about seizing or corrosion.
Sales Showrooms
Show off your inventory on the showroom floor, or let your customers inspect the underside of a car while shopping. AUTOLift3000 doesn’t take up precious showroom space, but it certainly does add to the shopping experience!
Collision Repair Centres
It’s the ideal backup when a vehicle lift is down for repairs or maintenance, or for overflow repairs. Increase your body shop’s productivity by using AUTOLift3000 for pre-inspections, reducing customer wait times for repairs.
Vinyl Wraps
Accessing hard-to-reach locations is a thing of the past. Stretch vinyl wraps into all the tough spots faster and without the hassle with AUTOLift3000. Now you can position the car however it’s convenient, helping you reduce costly mistakes and speed up the application time.
Spray Booths
Whether you’re painting door sills, applying rock guard, or touching up frame rails, it’s the perfect addition to painting booths of all kinds. With special rails included, it can be used on uneven floors or grates. When it’s not needed, it stores in a neat and compact package.
The Home Handyman's Garage
Change tires at home and save on your oil changes. Perform professional-style detailing and perform those basic repairs from the comfort of your own garage. The do-it-yourselfer will love the many uses of the AUTOLift3000!
Why
The versatile, easy to use solution that simplifies working on your car.

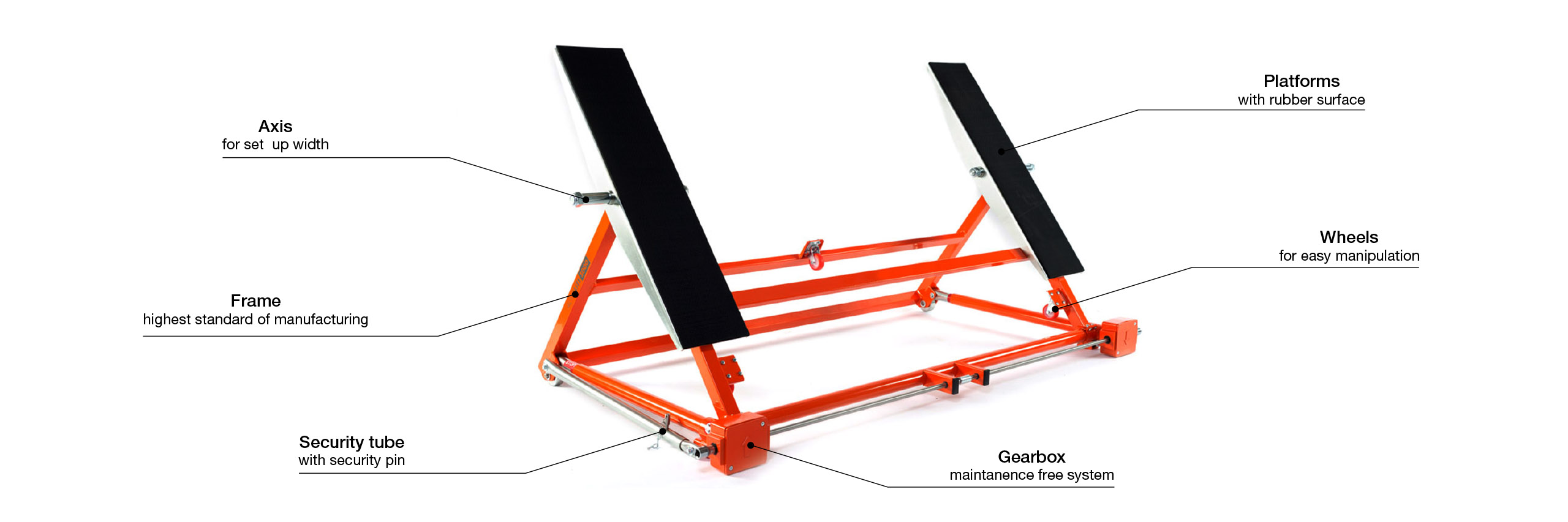

AUTOLift3000 isn’t meant to replace a permanently-fixed 2-post or 4-post vehicle lift. It’s designed to make vehicle lifts accessible to everyone, from the automotive repair professional to the car enthusiast. The AUTOLift3000 is the world’s first portable tilting floor car jack, and it turns any flat floor space into a usable workshop for inspections and light repairs. It’s the one piece of equipment that you’ll regret not buying sooner.
6614 lbs lifting capacity
The AutoLift3000 has a lifting capacity of 6,614lbs or 3,000kg and takes less than 30 seconds to lift to full height.
Maintanance free
It’s completely maintanance free. The AUTOLift3000 is fully mechanical and does not require annual inspections, maintenance, or permanent installation.
Indoor and outdoor use
The AUTOLift3000 can be used indoors or outdoors. It’s waterproof and can even be used on uneven surfaces when properly equipped with the supplied rails.
Portability
It’s completely portable with a low 4.5-inch profile when fully collapsed.
Lightweight
At just 99lbs it can be handled and stowed by just one person.
3-year product warranty
Every AUTOLift3000 portable car lift comes with a no-nonsense 3-year product warranty, and 1-year warranty on accessories.
Ability to tilt a vehicle
The AUTOLift3000 tilts on a centre axis to provide easy access to either the front or the rear. By using a vehicle’s own mass, tilting a car can be done by a single person safely.
High quality and well known brand
AUTOLift3000 is available in 50 countries with more than 18,000 units sold and delivered. It’s designed, manufactured and assembled in Europe in an ISO 9001:2015 certified factory.
No wiring, no hydraulics
Say goodbye to crods. The AUTOLift3000 uses just hand drill to lift and lower the car jack. There’s no need for an air compressor or messy air lines. It’s portable vehicle lift that is strictly mechanical and has no preumatic or hydraulic components.
Gallery
Questions
Still having questions? Ask us!
Buy
Simplify your workspace with world's first portable tilting car jack.
AUTOLlift3000 is backed by a 3-year no-nonsense manufacturer’s warranty, and delivery is available across Canada. Contact Vancouver Autolift today to have AUTOLift3000 make working on vehicles easier than ever.
FREE shipping across Canada!*
$ 2200 (shipping and applicable taxes extra)
Call and order at 1-888-420-3352 or email at info@smartinnovationsolutions.ca
*Some restrictions do apply: Shipments to PE, NT, NU, YT and any zone without ground shipping might require extra shipping charges.
